BRAINBOXES Ethernet 8 Port RS232
|
|
BRAINBOXES Ethernet 8 Port RS232
-
Output Interface
Serial
-
External Ports
Yes
-
Host Interface
Network
-
Internal Ports
No
-
RAID
No
|
Description
Specifications

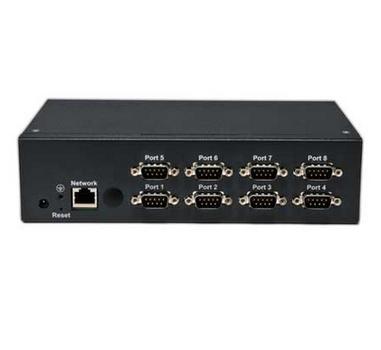

ES-279
8 Port RS232 Ethernet to Serial Adapter
- 8 Port RS-232
- Ethernet to Serial Device Server
- Data rate from 110 to 921,600 baud
- User friendly interface, simple to use, powerful in operation
- Web configuration and RFC2217 compliant interface for non-Windows users
- IP-30 rated enclosure
- LED status indication
- Optional DIN rail mounting kit
- Serial Port Tunneling allows serial cable replacement over any distance, no software required
- Power supply included (power input 5-30V DC)
| Antal serielle porte | 8 |
| Serial interface-type | RS-232 |
| Ethernet LAN datahastigheder | 10,100 Mbit/s |
| Netværksstandard | IEEE 802.3,IEEE 802.3u |
| Flowkontrol support | Yes |
| Baud hastighed | 1000000 Kbit/s |
| RS-232 signaler | CTS,DSR,DTR,RTS |
| Ethernet LAN (RJ-45) porte | 1 |
| Kabelteknologi | 10/100Base-T(X) |
| Wi-Fi | No |
| LED indikatorer | Ja |
| Indgangsspænding | 5 - 30 V |
| Understøttede Windows operativsystemer | Ja |
| Understøttede netværksprotokoller | TCP/IP |
| Mål (BxHxD) | 122,5 x 215 x 56 mm |
| Vægt | 870 g |
| Driftstemperatur (T-T) | 0 - 55 °C |
| Sikkerhed | IP-30 |
