BRAINBOXES PCI 2xRS422/485 18MBaud
|
|
BRAINBOXES PCI 2xRS422/485 18MBaud
-
Output Interface
Serial
-
External Ports
Yes
-
Host Interface
PCI
-
Internal Ports
No
-
RAID
No
|
Description
Specifications
Related products
CC-525 PCI 2xRS422/485 18Mb
Description

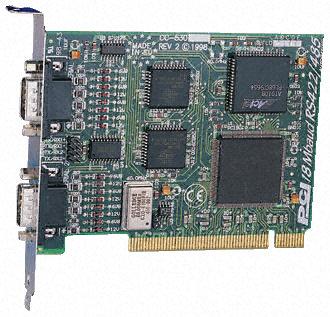

PCI card providing 2 industry standard 9 pin RS422/485 serial COM ports in a single PCI slot. On board Zener diodes ensure electrical protection.
Stunning ULTRA 15 or 18 megabaud data transfer rates!! And 128 byte deep FIFO guarntees uncompromising performance and fault free use.
Software
Microsoft Signed Drivers (easy installation and robust operation) for:
- Windows Server 2003 x32 bit and x64 bit Editions
- Windows XP x32 bit and x64 bit Editions
- Windows 2000
Fully tested drivers also included for:
- Windows Me, Windows 98 and 95, Windows NT
As well as: full product documentation, a thorough trouble shooting guide and terminal software.
Features
- 2 Port RS422/485
- 32 bit and 64 bit PCI Compatible
- 128 Byte FIFO with user definable trigger level
- 15 and 18 MEGABAUD data rate options
- Standard Profile
- Full Duplex and Half Duplex Autogating
- Transient Spike Protection
- Drivers for all popular operating systems
- Sample programs, Test and Terminal software- all with source code
- Lifetime Support and Lifetime Warranty
Technical Specifications
| Specification |
Detail |
|
RS422/485 |
2 x 9 Pin |
|
Max Data Transfer Rate |
18 Mega Baud |
| Host-interface | PCI |
| Stik | DB9 |
| Fuld dupleks | Yes |
| Vægt | 89 g |
| Pakkevægt | 184 g |
| Porte, antal | 2 |
| Mac kompabilitet | No |
| Strømkrav | 5V |
