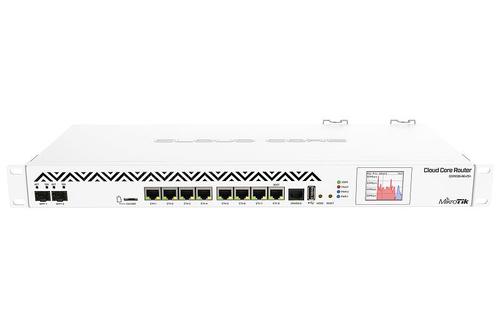

MIKROTIK CCR1036-8G-2S+EM Cloud Core Router

CCR1036-8G-2S+EM
Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console cable and a USB port.

The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). Also available now, the EM model with 16GB of RAM!
Supports both SFP (1.25G) and SFP+ (10G) modules

Product code CCR1036-8G-2S+EM
CPU nominal frequency 1.2 GHz
SFP DDMI Yes
CPU core count 36
Architecture TILE
Size of RAM 16 GB
10/100/1000 Ethernet ports 8
Memory Cards 1
Number of USB ports 1
Memory card type microSD
Power Jack 1
Supported input voltage 18 V - 28 V
Voltage Monitor Yes
CPU temperature monitor Yes
PCB temperature monitor Yes
Dimensions 355x145x44mm
Operating System RouterOS
Tested ambient temperature -20C .. +60C
License level 6
Current Monitor Yes
CPU TLR4-03680CG-12CE-A3b
SFP+ ports 2
USB slot type microUSB type AB
Serial port RS232
Storage type NAND
Storage size 1 GB
