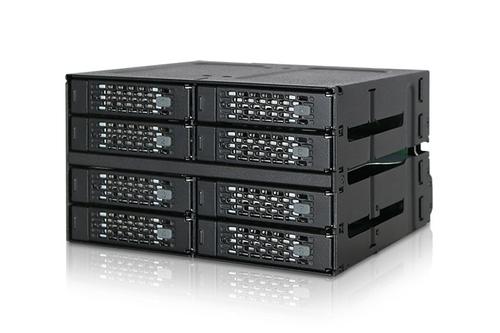

RAIDSONIC Backplane IcyDock 8x6,3cm SATA/SAS in 1x5,25" SSD/HDD 5-15mm retail
|
|
RAIDSONIC Backplane IcyDock 8x6,3cm SATA/SAS in 1x5,25" SSD/HDD 5-15mm retail
-
Installed
0GB
-
Max Disks
8
-
RAID
Yes
-
Type
Internal
-
Disk Size
2.5"
|
Rugged Full Metal 8 Bay 2.5” SAS/SATA SSD/HDD Backplane Cage for 2x External 5.25” Bay
MB508SP-B
Introducing the ICY DOCK ToughArmor MB508SP-B 8-bay 2.5” drive cage for hard drives and SSDs, designed for high-density storage of 8x 2.5” SAS/SATA HDD/SSD from 5-15mm in 2x 5.25” CD/DVD optical drive bays, making it the densest drive cage available supporting full 15mm drives. Support for 15mm hard drives means enterprise SAS drives and high capacity drives are fully supported, which are used in applications requiring long-term reliable and fast data storage for archival and backup purposes. Two Mini-SAS HD connectors are used to connect all 8 drives, greatly reducing cable clutter over traditional SATA ports and improving reliability due to the interference reducing EMI shielding built into Mini-SAS HD cables. To further improve reliability and security, MB508SP-B uses a ruggedized full-metal construction meeting flammability requirements, as well as a large 80mm user-adjustable cooling fan to protect against drive failure from overheating.
ICY DOCK’s MB508SP-B packs 8x full-height SATA/SAS HDD/SSDs into just 2x 5.25” CD/DVD optical drive bays. This makes it perfect for applications requiring lots of storage using enterprise SAS hard drives, such as server and data-center PCs storing large amounts of data.
Features:
- Removable drive tray system for easy maintenance
- Rugged heavy duty full-metal construction of all internal and external components
- Perfect for rugged and industrial applications that must meet flammability requirements
- Fits 8x 5-15mm 2.5” SATA/SAS hard drives or SSDs in 2x 5.25” external CD/DVD drive bays
- Large 80mm cooling fan with high, low, and off settings for full control
- The cooling fan is replaceable for maximum expandability
- Uses 2x Mini-SAS HD port for all 8 drives
- All 8 drives powered by 2x SATA 15-pin power cables
- LED status lights give you drive updates at a glance
- Optional drive ID labels to maintain order when using RAID
- Anti-Vibration Technology (AVT) – Creates a safe environment for hard drives and SSDs
- Active Power Technology (APT) - individual LED & cooling fan only powers up if there is a drive installed in the bay
- Eagle-hook lock system keeps drives secured within the enclosure
- Supports enterprise SAS drives including seagate Exos, HGST Ultrastar C series, Dell, HPE and Toshiba SAS drives
- Supports SAS & SATA 6Gbps and hot swap
- Supports MiniSAS HD and SATA power cables with locking latch design
- Industry leading 3 year warranty with exceptional customer support
Specifications:
|
|
|
Product Name : |
Full Metal 8 Bay 2.5" SAS/SATA SSD & HDD Backplane Cage |
|
|
|
Model Number : |
MB508SP-B |
|
|
|
Color : |
Black |
|
|
|
Support Drive Size : |
8 x 2.5" SSD / HDD |
|
|
|
Compatible Drive Type : |
SATA / SAS (Support Single Channel SAS) |
|
|
|
Number of Drives : |
8 |
|
|
|
Max Drive Height : |
15mm |
|
|
|
Drive Bay : |
2 x external 5.25" drive bay |
|
|
|
Host Interface : |
2 x miniSAS HD (SFF-8643) |
|
|
|
Power Input : |
2 x 15 pin SATA power connectors |
|
|
|
Transfer Rate : |
Up to 6Gbps (Depending on hard drive speed) |
|
|
|
Support HDD Capacity : |
No Limitation |
|
|
|
Drive Cooling : |
1 x 80 mm Fan |
|
|
|
Structure / Material : |
Full Metal |
|
|
|
Support Hot-Swap : |
Yes |
|
|
|
Product Dimension (L x W x H) : |
146 x 157.9 x 84mm |
|
|
|
Product Weight : |
1460g |
|
|
|
Shipping (Package) Weight : |
1790g |
|
|
|
Drive Activity LED Indication : |
Drive power: solid green; HDD access: flashing green |
|
|
|
Package contents : |
1 - Device, 1 - user manual, 1 - ID Plug, 44 - screw |
|
|
|
Product Name : |
Full Metal 16 Bay 2.5" SAS/SATA SSD & HDD Backplane Cage |
|
|
|
SATA Connector Insertion Rate : |
10,000 |
|
|
|
Humidity : |
5%~65% RH |
|
|
|
Operating Temperature : |
0°C to 60°C (32°F to 140°F) |
|
|
|
Storage Temperature : |
-35°C to 70°C (-31°F to 158°F) |
|
|
|
Compliance : |
CE, RoHS, REACH |
|
|
|
Warranty : |
3 years |
